Plastic Injection Water Filter Housing Mould

As the demand for clean water solutions escalates worldwide, injection mould manufacturers require tooling that can produce high-pressure resistant housings without compromising on cycle time.

Engineered to meet the rigorous demands of the global water purification industry, this SHD’s precision injection mould series sets a higher standard for durability, clarity, and structural integrity.

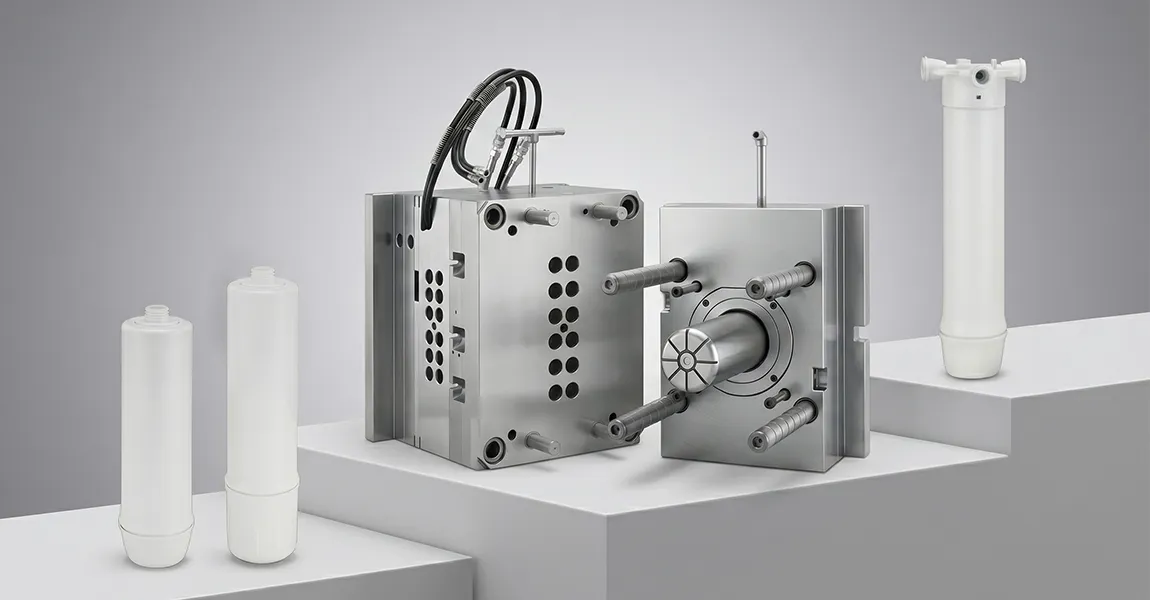

Plastic Injection Water Filter Housing Mould-SHD

Features of Water Filter Housing Mould

High-Pressure Structural Integrity: Designed to produce housings that withstand significant water hammer effects and high-PSI environments.
Optimal Cycle Efficiency: Integrated with high-performance beryllium copper cooling inserts to reduce cooling time by up to 15-20%.
Superior Surface Finish: Achieves high-transparency finishes for clear housings, allowing for easy visual inspection of filter cartridges.
Long Tool Life: Built with premium grade steels to ensure a lifespan of over 500,000 to 1,000,000 shots.

Precision Engineering for Clean Water Solutions:

“Our goal was to create a mould that doesn’t just produce a part, but ensures the safety and reliability of the entire filtration system,” says the Head of Engineering at SHD. “By utilizing advanced flow analysis and precision CNC machining, we’ve eliminated common defects like weld lines and air traps that usually plague thick-walled filter housings.”

The injection water filter housing mould is compatible with various materials, including PP, PP+10–30GF, ABS, SAN and POM. This provides manufacturers with the flexibility to produce both opaque and transparent units for residential or industrial use.

Our injection molding capabilities ensure stable production of connectors, housings, valves and other functional parts. This is particularly true for parts with strict dimensions and sealing requirements.

Conclusion:

As the water treatment industry continues to evolve, having a reliable precision injection mould partner is essential. It is the key to maintaining a competitive edge.

SHD remains dedicated to pushing the boundaries of what is possible in plastic injection molding. This ensures that our clients receive not just a mould, but a comprehensive solution for long-term production success.

FAQ:

Q1: What materials are best suited for SHD’s water filter housing moulds?

A: Our moulds are versatile and optimized for several high-performance resins. For transparent housings, we typically recommend AS (Acrylonitrile Styrene) or PC (Polycarbonate). For opaque, heavy-duty industrial housings, Reinforced Polypropylene (PP) is the preferred choice due to its excellent chemical resistance and cost-effectiveness.

Q2: How does SHD ensure the burst pressure resistance of the molded housing?

A: Safety is our priority. We utilize Moldflow Analysis during the design phase to optimize gate placement and wall thickness. This ensures uniform material distribution and eliminates structural weak points like knit lines, allowing the final product to pass rigorous high-pressure burst tests.

Q3: Can the mould design be customized for different filter cartridge sizes?

A: Yes. SHD provides fully customizable tooling solutions. Whether you require standard 10-inch or 20-inch lengths, or “Big Blue” style large-diameter housings, our engineering team can adapt the plastic injection water filter housing mould specifications to meet your unique dimensions and thread requirements (NPT/BSP).

Why choose SHD?

Over 20 years of Industry expertise
ISO 9001 & ISO 14001
Multi-industry precision mold & molding experience, including automotive, medical devices, water purification systems, 3C, etc., to meet all your requirements.
Years of cooperation with multinational companies & global export experience, ensuring your peace of mind.
Full-chain precision equipment: high-precision CNC, EDM, WEDM, injection molding and measuring machines to meet your highest standards.
Integrated mold & molding solutions streamline your supply chain, delivering final products directly to you.
